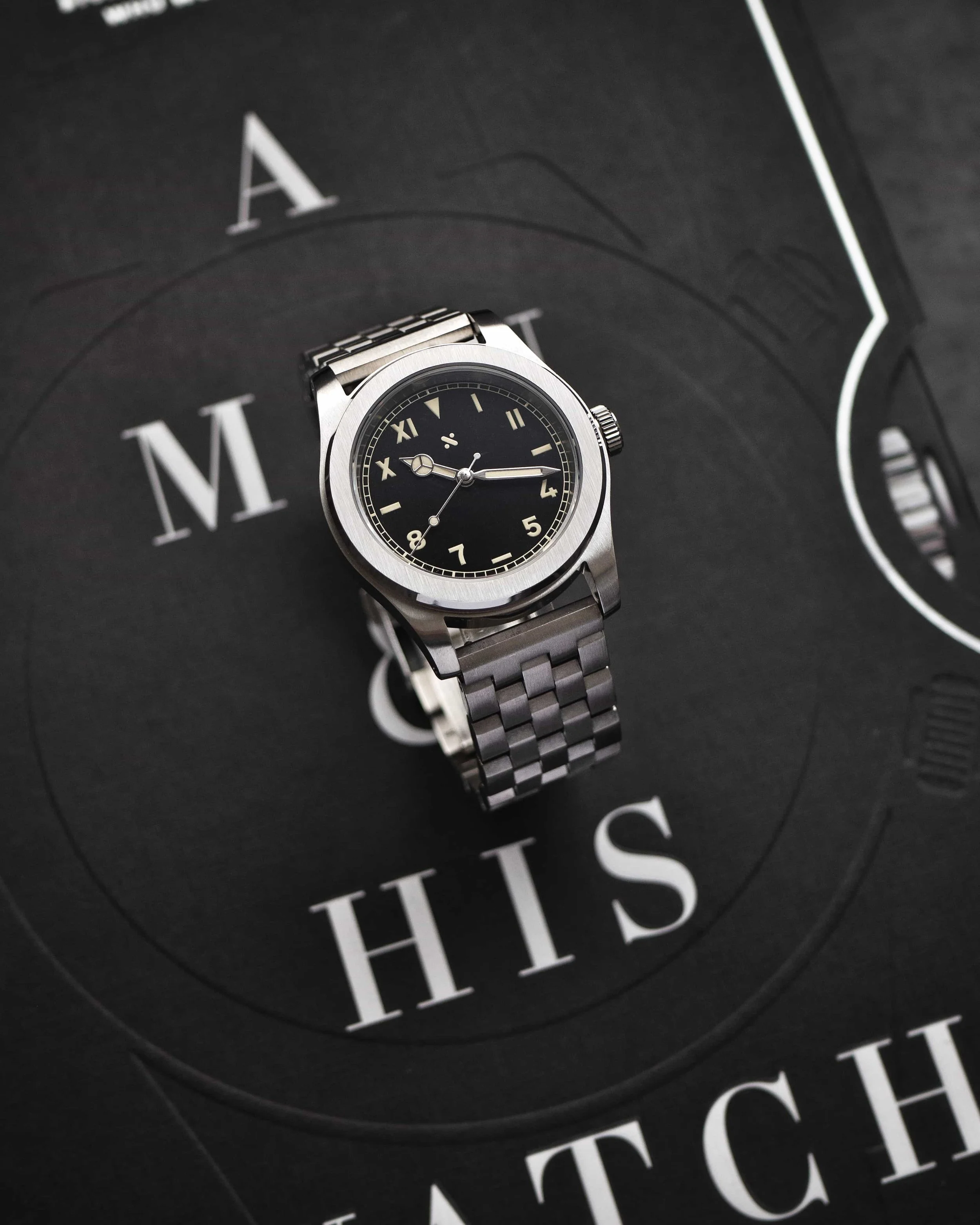

Namoki NMK931 Build: A Vintage Watch with a California Dial
Ad / Affiliate disclosure: Namokimods supplied the parts for this build. This article contains affiliate links, which means I may earn a commission from qualifying purchases at no extra cost to you. All opinions are my own.

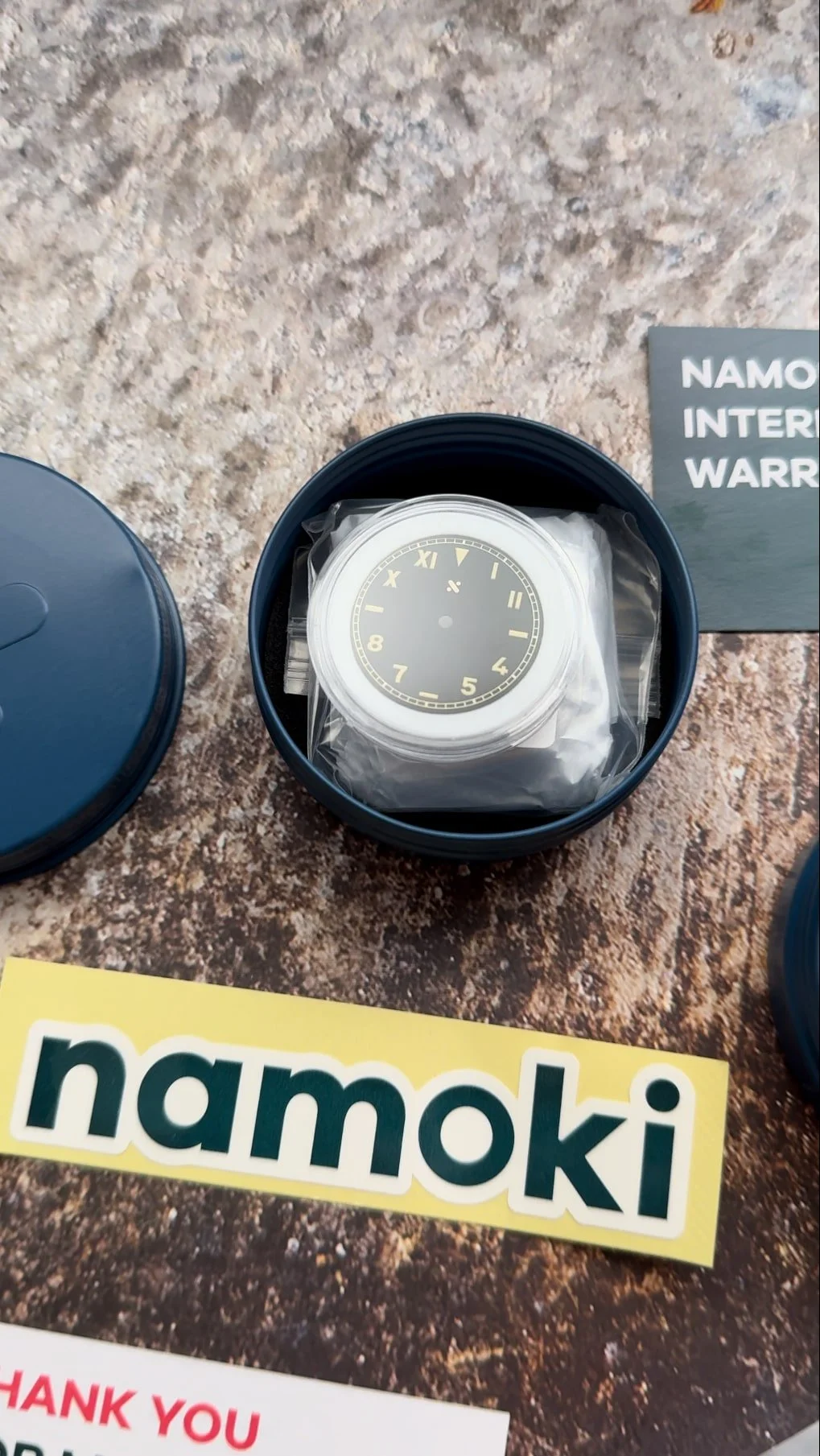

I’ve always liked a California dial. That mixture of Roman and Arabic numerals has a charm of its own, especially with warm, cream markings against a black background. So finding one in this package from Namokimods was a good start.

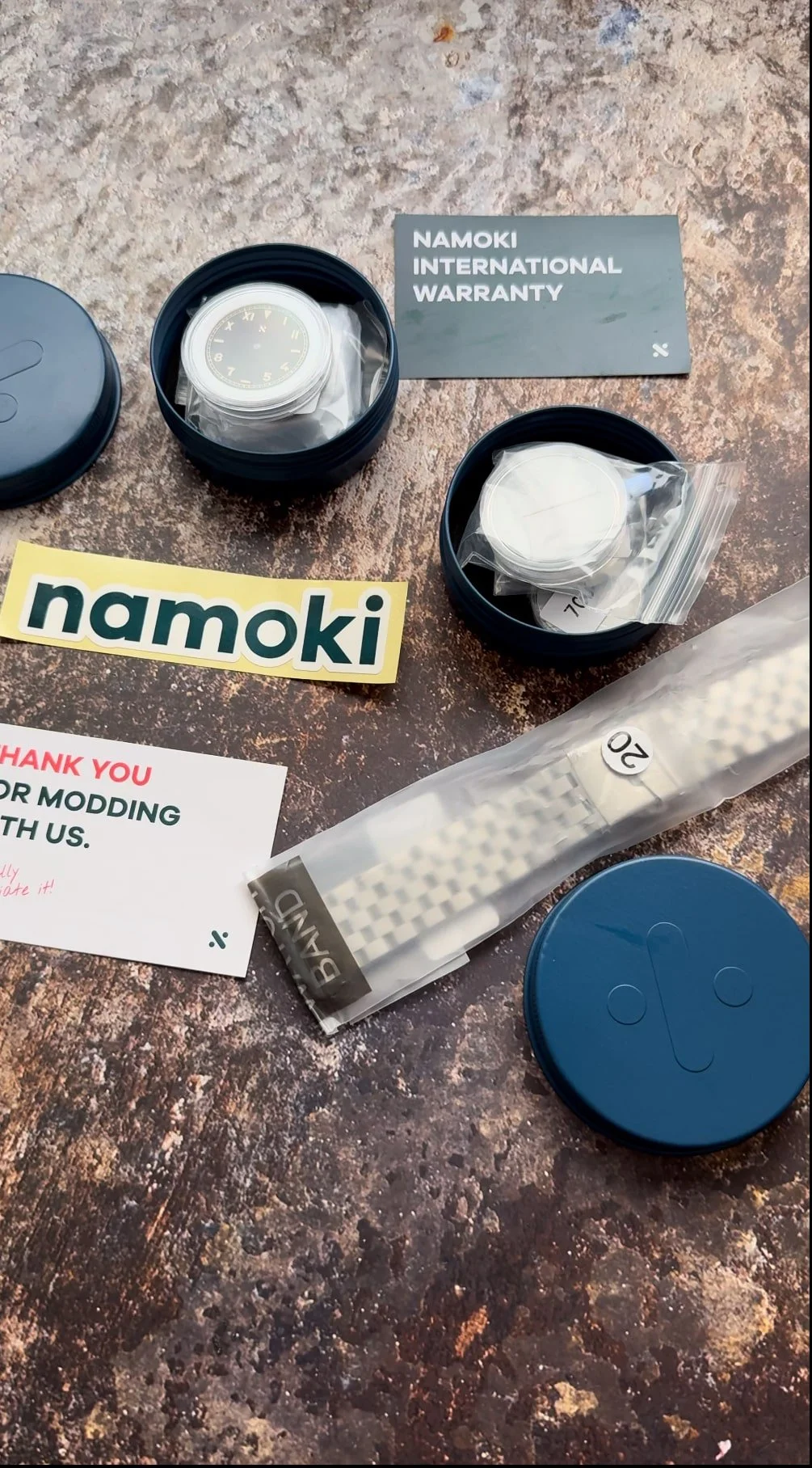

This was the first Monthly Watch Build with Namokimods, with a bundle of components to put together and enjoy. Alongside the dial were a steel NMK931 field-watch case, vintage-patina Mercedes hands and a five-link bracelet.
I’d already spent a few years tinkering with watches, from changing bezels and inserts to complete builds. I wouldn’t call myself an expert, but I’d certainly discovered how addictive it can be. When Namoki offered to send these bundles, I thought it would be a fun way to try some different builds—and perhaps give family members a chance to have a go too.
A California dial with plenty of character

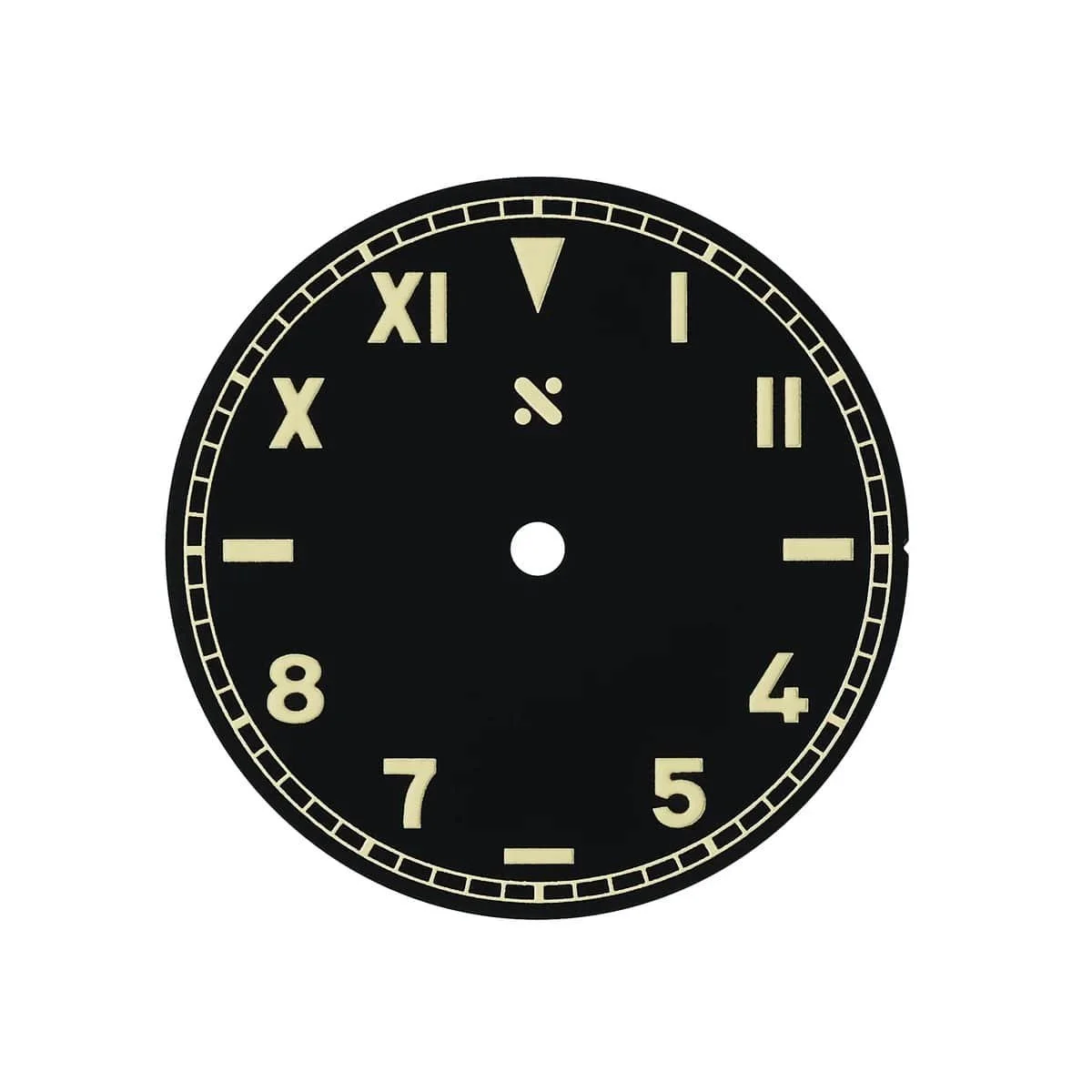

The dial is what makes this watch for me. You’ve got Roman numerals across the upper half, Arabic numerals below, a triangle at twelve and bars at three, six and nine. A fine minute track runs around the outside.
It sounds like quite a mixture when you write it down. On the watch, though, it all falls into place. There’s room around the different markings, and the black background keeps everything clear.
What I particularly like is the colour. Those creamy markings give the dial an aged appearance, and that faux patina really suits the vintage look of this build. Bright white would make the same layout look much crisper, but I’m glad this one has that softer, warmer feel.

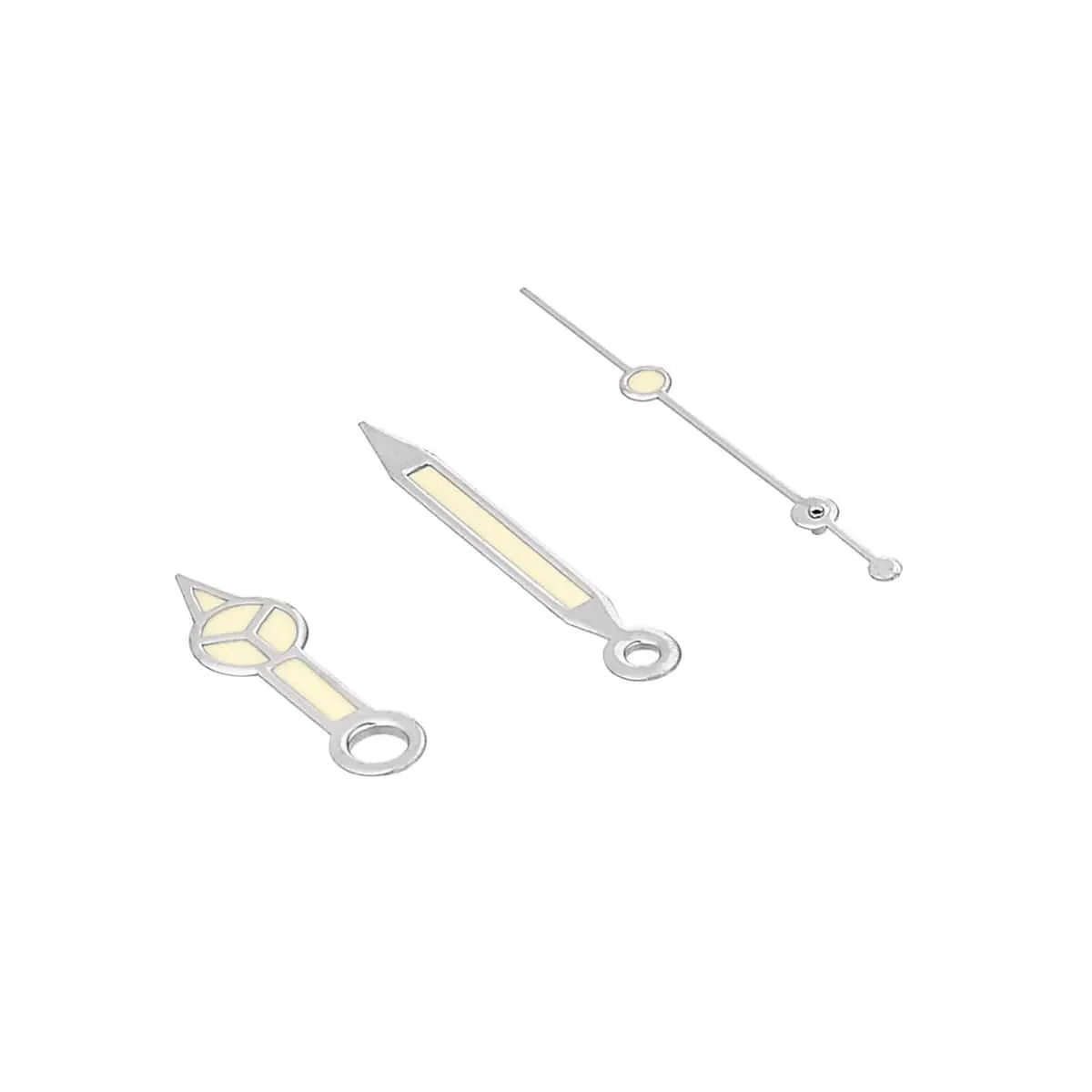

The Mercedes hands pick up the same colour through the centre. They’re familiar shapes too: the divided circle on the hour hand, the longer pointed minute hand and the little luminous circle on the seconds hand. There’s quite a bit to look at between those and the numerals, but keeping the colours together stops it feeling too busy.
There’s no date window breaking things up, and hardly any text. Just the small Namoki emblem, leaving plenty of black around the hands. I like that the dial has room to breathe despite its slightly unusual layout.
The steel case gives it a good home

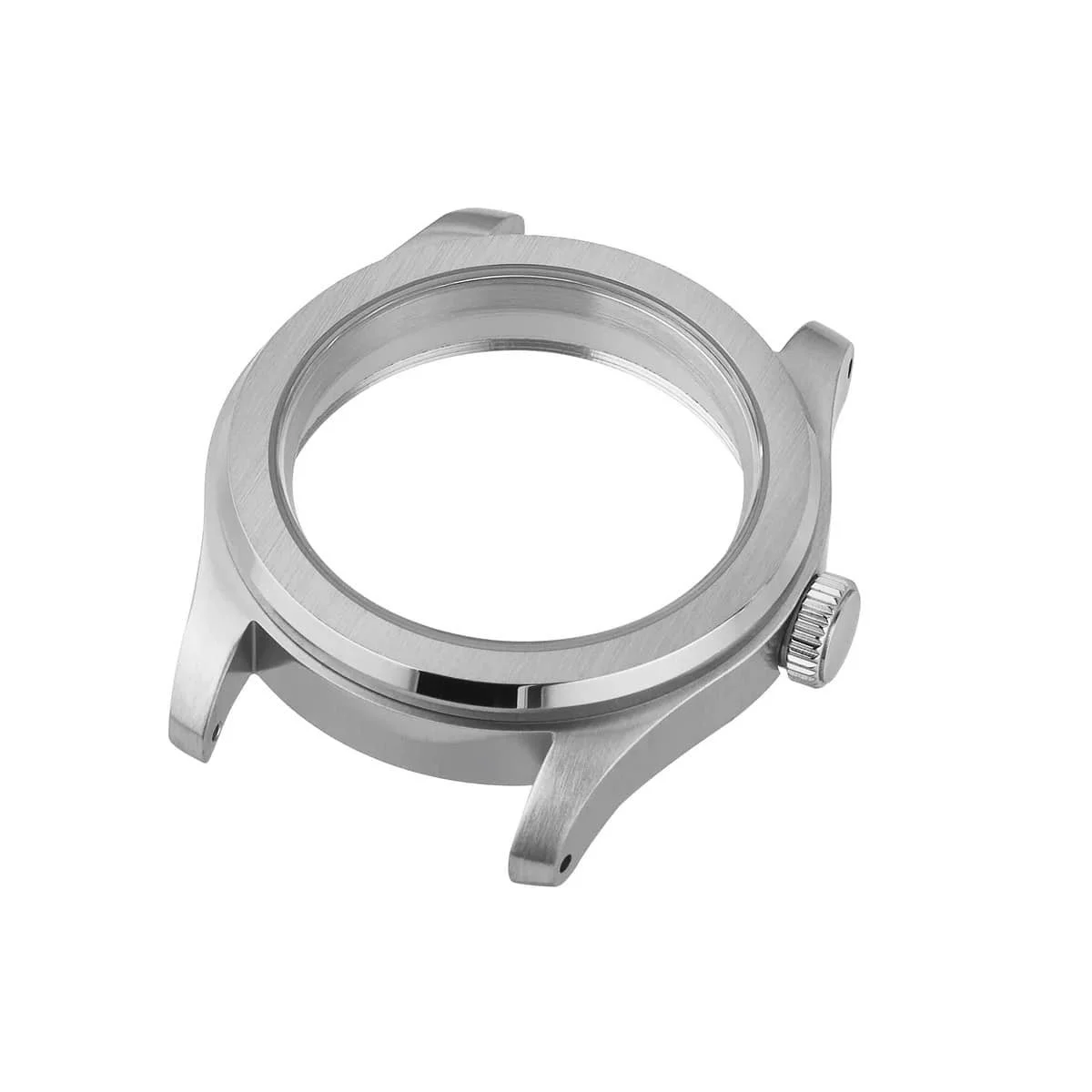

With the dial doing much of the talking, the NMK931 Field Watch Case gives it a simple steel surround. Namoki lists it at 38mm across and 46.5mm from lug to lug, with 20mm between the lugs.
I was pleased with the finishing. There’s brushing across the upper surfaces and a brighter polished edge around the plain bezel, which you can see nicely in the angled photographs. It gives you a few details to appreciate in the case itself without drawing attention away from the dial.
The flat sapphire crystal was another part I was happy with. Namoki specifies clear anti-reflective coating, and the quality of both the crystal and case impressed me on the finished watch.
Although Namoki calls this a field-watch case, it leaves you plenty of freedom over the watch you build around it. Here, the plain bezel gives the California dial and Mercedes hands a good home. You can easily imagine a different dial and handset taking the same case somewhere else, but I think this combination looks great.
Putting the watch together
Fitting and aligning the hands was the most delicate part of this build. It’s one thing to look at the parts and picture the watch you’re going to make. Once you’re working with those tiny fittings, you need to slow down and give them your attention.
The hands need to sit correctly on the movement and line up properly, with enough clearance to move without catching one another. There’s very little room to work with, so being able to see what you’re doing makes a real difference.
That’s why a loupe would be my main recommendation here. A closer view makes it much easier to judge the alignment instead of trying to make everything out with the naked eye. A steady hand helps, of course, but patience matters just as much. This isn’t the bit to hurry through because you’re keen to get the watch on your wrist.
I found it rewarding, even if it asked for a little care along the way. Hand fitting becomes more familiar with practice, and there’s a lovely moment when you see the movement ticking and the hands making their way around the dial. All those separate parts are now a watch.

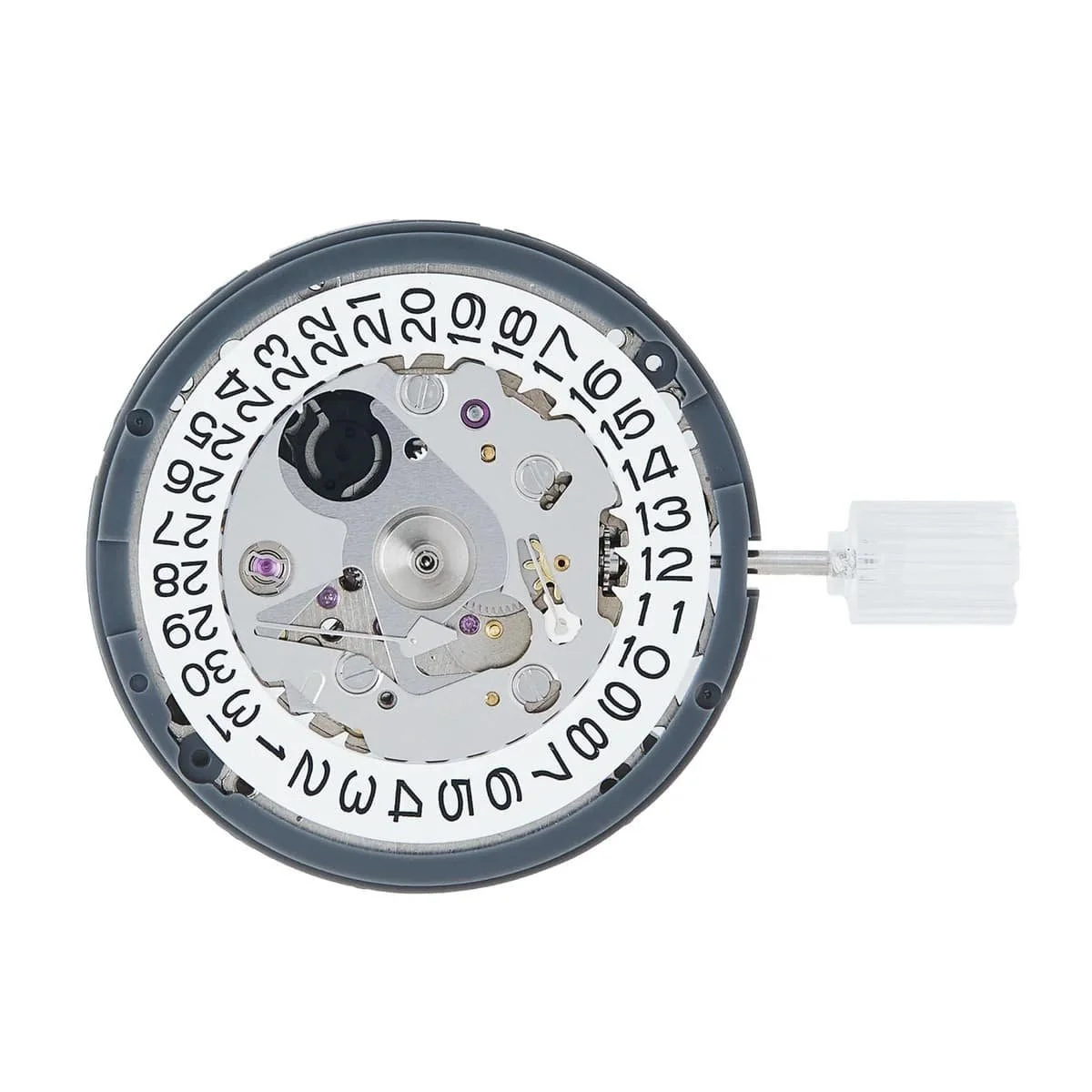

Inside this one is an NH35A automatic movement, as recorded in my original parts list. It has hand-winding and hacking, so you can wind it through the crown and stop the seconds hand when setting the time.
The NH35 also has a date mechanism. Here, that sits behind the no-date dial, leaving the display uninterrupted.
On the wrist—and the temptation of leather

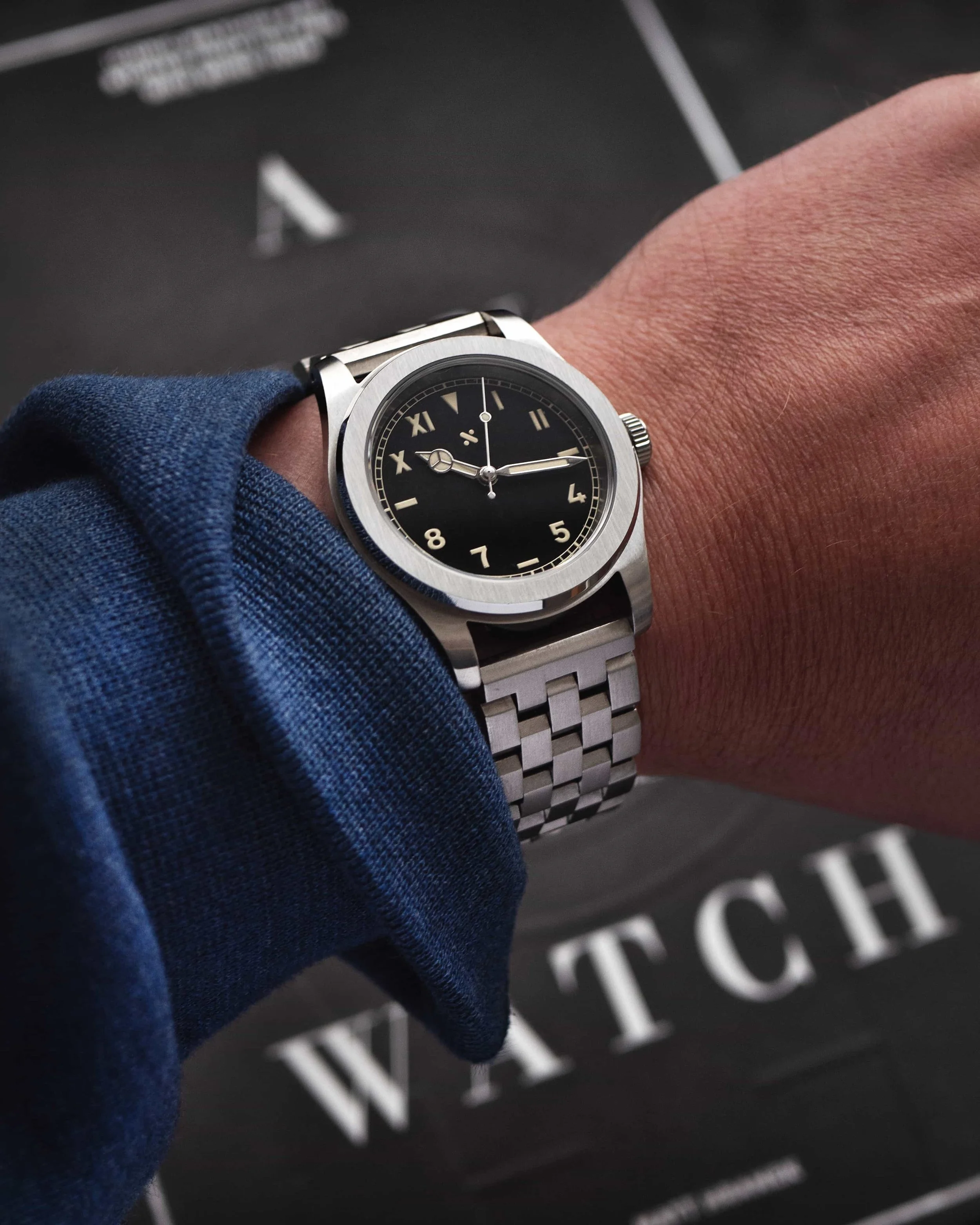

After the careful work of fitting the hands, being able to put the finished watch on was a pleasure. I think it looks fantastic on the wrist. The cream markings and Mercedes hands give it the vintage character I enjoy, and the steel case frames them beautifully.

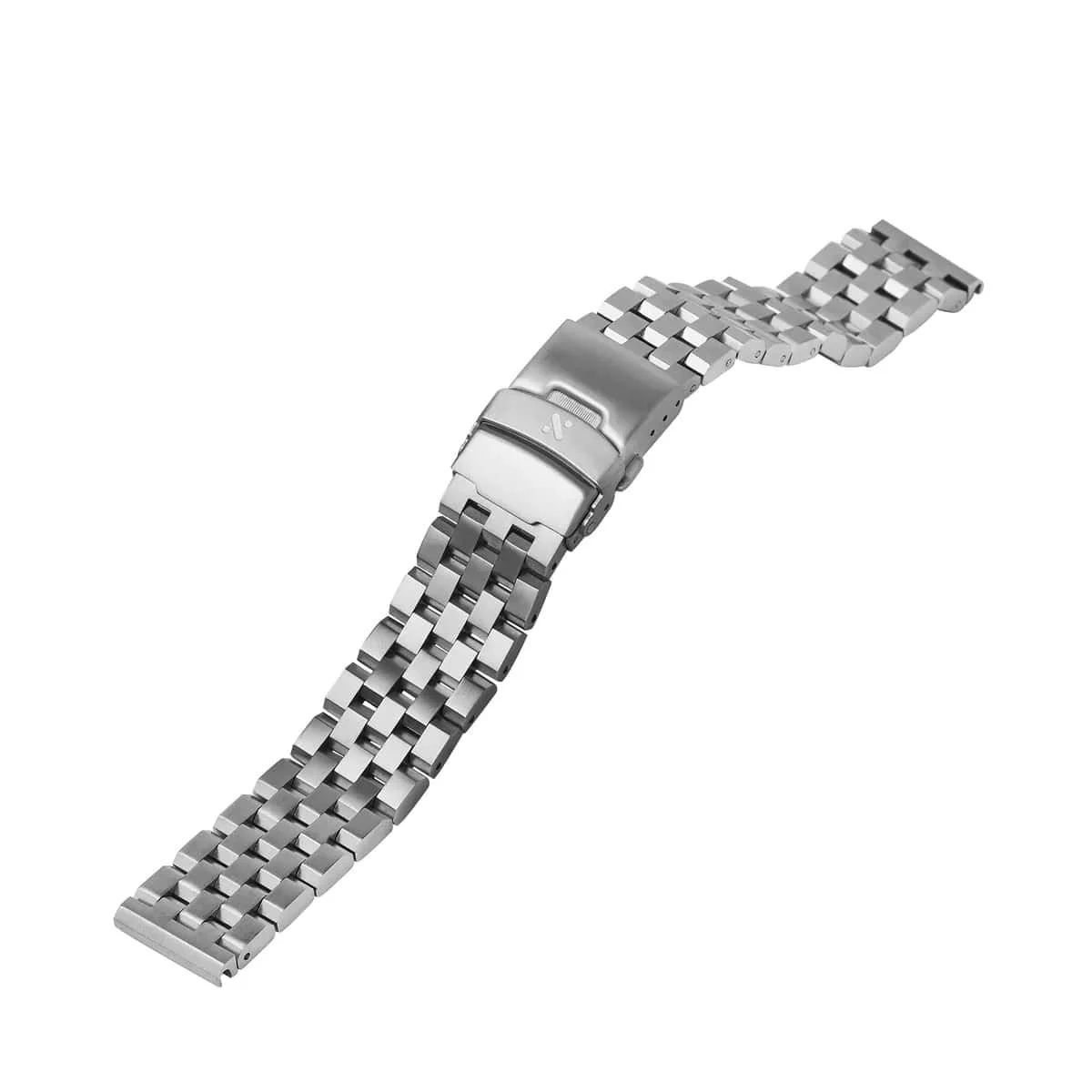

The five-link bracelet gives it a sturdy feel. It felt well made, and the smaller links add a little more detail than a straightforward three-link design. The brushed finish follows on nicely from the case too.
I liked the quality, although I can understand the bracelet not being everyone’s cup of tea. Personally, I also think this watch would look fantastic on a good leather strap.
You’d have less steel around the wrist and a different setting for that black dial and its warm markings. I haven't tried it on leather yet, but I'm certainly tempted!
That’s a part of watch building I enjoy. You can be pleased with what you’ve put together and still find yourself thinking about a small change to try next.
My Polerouter-inspired Namoki build took another approach to vintage styling, with a silver dial and grey leather strap. It’s a good example of how much the strap can bring to the finished watch.
Planning a similar build
These are the components recorded in my original article:
| Component | Used in this build |
|---|---|
| Case | NMK931 Field Watch Case Bundle, steel finish |
| Dial | Namoki Vintage California |
| Hands | Mercedes Vintage Patina Lume Finish |
| Bracelet | Straight End Watch Bracelet, 5 Links Brushed Finish |
| Movement | NH35A automatic |

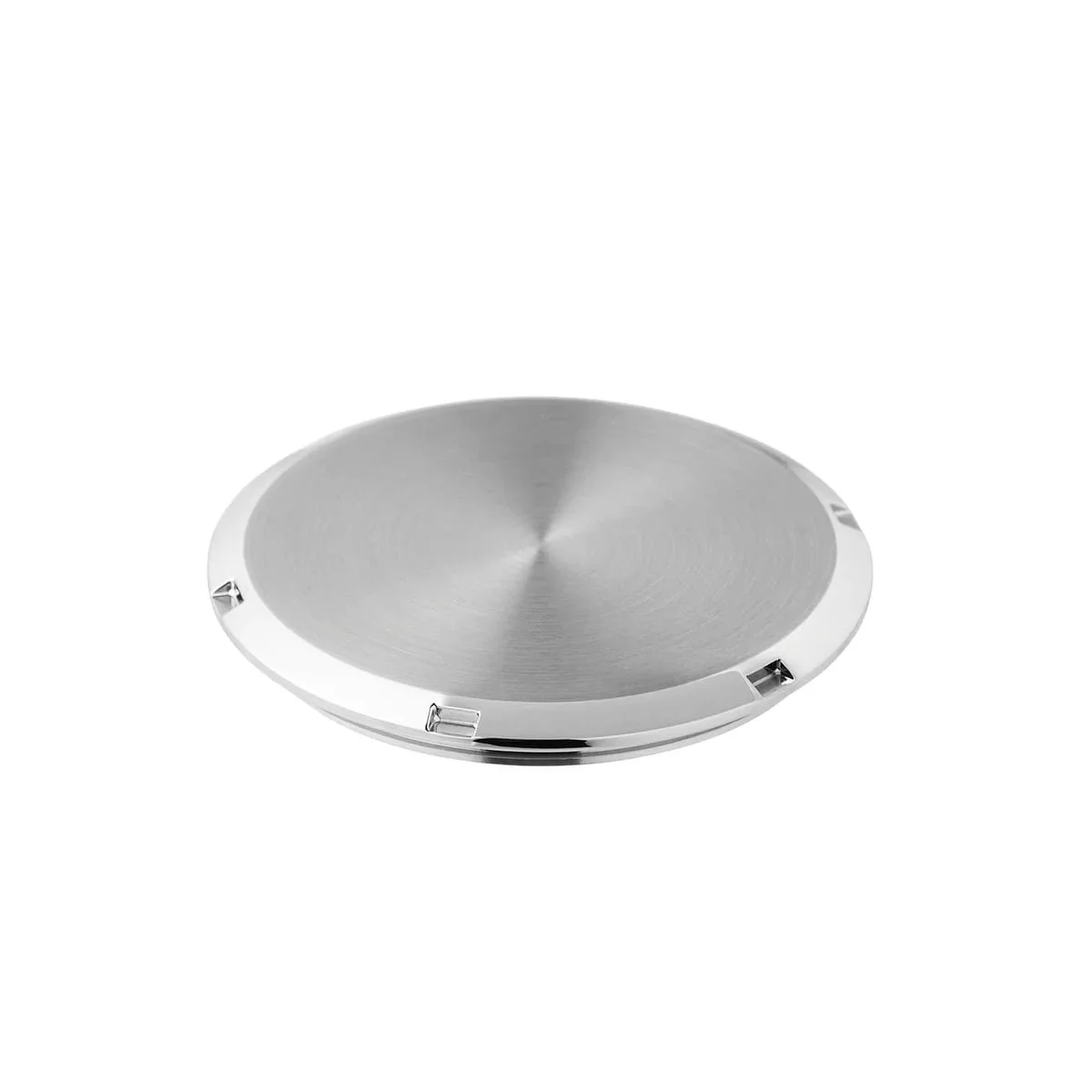

| Caseback | SKX Slim Caseback, brushed finish |
The case bundle includes the flat sapphire crystal, SKX013 coin-edge crown, integrated bezel and chapter ring, caseback gasket and spring bars. A caseback isn’t listed among its contents, so remember to include one in your parts budget.
The Vintage California dial is 28.5mm across, and Namoki lists both it and the Mercedes handset as NH35-compatible. Check the correct dial feet for your crown position, along with hand clearance and movement support. For this case, choose the bracelet’s 20mm version; Namoki also sells a 22mm option.
There are a couple of specifications to read carefully. Namoki’s 9.2mm case thickness excludes the caseback, so it isn’t the total thickness of my finished watch. The slim back is currently listed for a grey NH35/NH36 spacer.
The vintage-coloured lume has a trade-off too. Namoki says the added pigments reduce its brightness and duration compared with standard C3. That’s manufacturer guidance rather than a lume test I carried out.
My Seiko watch modding beginner’s guide covers tools and preparation in more detail. Before relying on a completed build in water, have it appropriately pressure-tested; the case’s advertised 100m rating doesn’t establish the water resistance of your own assembly.
Check the Namoki NMK931 steel case bundle
MTR10 — 10% off eligible purchases.
My thoughts on the finished watch
I’m really pleased with this one. I already had a fondness for California dials, and those creamy markings with the matching Mercedes hands gave me plenty to enjoy before the watch was even finished.
Getting the hands aligned took patience, but seeing them moving across the dial afterwards was a satisfying reward. Better still, I could put the watch on and enjoy what I’d made. However many parts you’ve looked at online, there’s something lovely about reaching that point with a build.
The bracelet is sturdy and well made, and I’m happy with how the watch looks on it. I still fancy seeing it on leather, though. That dial is just asking for a good strap to try alongside it.
For now, I’m enjoying the watch as it is. It has the vintage look I like, it looks fantastic on the wrist, and I had the pleasure of putting it together myself. That’s a pretty good start to the series.
